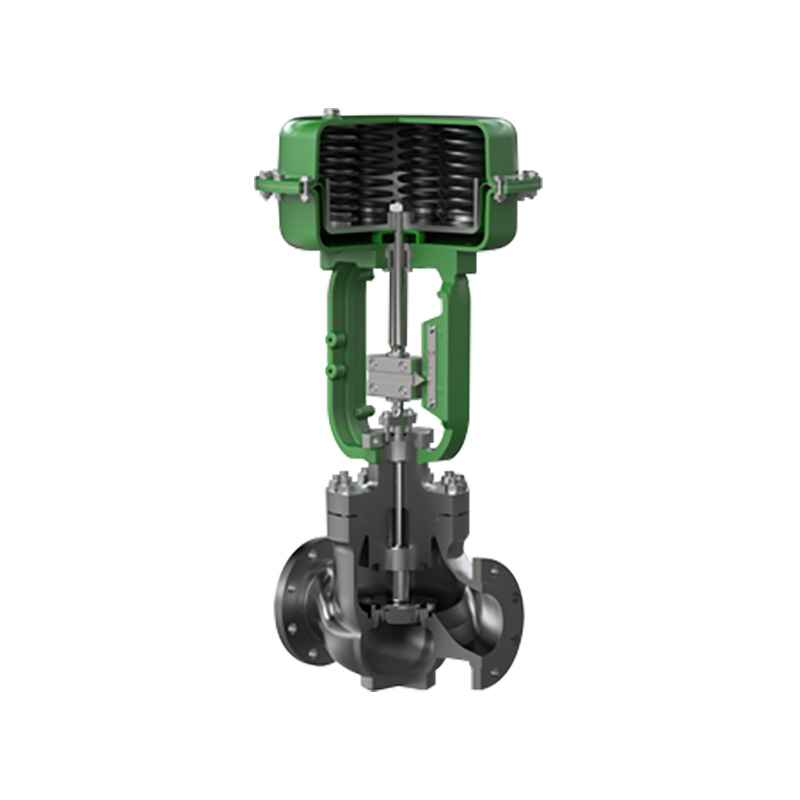

 JCV-101S시리즈는 Top Guided Type 트림 구조로, 작고 간단한 구조이며, 간편한 작동으로 다양한 운전조건에 적용이 가능합니다. 또한 유지보수가 용이한 구조를 갖추고 있습니다. JCV-101S : Top Guided Type
| Type |
Globe Valve |
| Model |
JCV-101Q Series |
| Plug form |
Unbalanced, Balanced |
| Plug Characteristic |
EQ％, Mod EQ%, Linear, On-off. |
| Trim Type |
P-port single, Quick Change,
Optional special trim |
| Valve
Size(mm) |
1/2" |
3/4" |
1" |
11/2" |
2" |
21/2" |
3" |
4" |
| 15 |
20 |
25 |
40 |
50 |
65 |
80 |
100 |
| Body ratings |
JIS 10K ~ 40K, ANSI Class 150#
~ 600#, PN10 ~ 40 |
| End Connection |
RF, FF, SW, BW, RTJ, etc |
| Body Material |
A216-WCB, A216-WC6, A216-WC9,
A351-CF8, A351-CF8M, A351-CF3M and other alloy Steels. |
| Trim Material |
316SS,316LSS Stellite seat,
Stellite face |
| Seat Type |
Metal, Soft |
| Bonnet
type |
Standard type (－17～＋230℃ ),
Extension type (－45～under, －17℃ or
over＋230℃ ) |
| Long-Extension
type ( －196～－45℃ ), Bellow seal type, jacketed type |
| Packing |
TFE, Grafoil, etc. |
| Gasket |
Spiral Wound Metal gasket |
| Painting color |
Maker standard |
|
